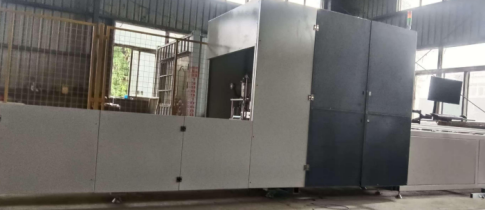

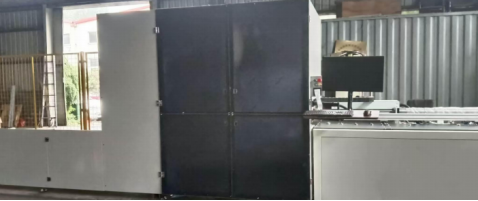

Curtain Wall Intelligent Sawing & Milling Machining Center

A new-generation intelligent processing equipment tailor-made for door and curtain wall industries. Featuring lower investment cost, smaller footprint, higher efficiency and premium appearance, it redefines industrial processing standards and helps enterprises maximize production capacity within limited workshop space.

Breaking the functional limitations of traditional machinery, one single machine fulfills full-process slot & hole milling and multi-angle precision cutting for door & window profiles. Raw profiles can be loaded with one click, and finished profiles of various specifications are discharged directly. No transfer between multiple machines, realizing one-stop efficient processing to save equipment investment, labor and workshop space!

Efficiency Revolution: Double Productivity, Leading the Industry

✅ Dual-Zone Simultaneous MachiningInnovative structural design enables synchronous drilling & milling and cutting operations. Processing efficiency doubles (increased by 200%), with performance 80% ahead of competitors for outstanding production capacity.

✅ High-Efficiency Feeding SystemNew adjustable-free gripper feeding mode. No extra commissioning for profile changeover, seamless machining workflow to further shorten cycle time and boost productivity.

✅ Ultra-Fast Cutting PerformanceServo-controlled 3-speed saw blade movement: high-speed rapid traverse, stable cutting feed and fast retraction. Single cutting cycle only takes 4 seconds. The rotation center precisely coincides with the saw kerf, supporting 3 cutting angles in one positioning, balancing speed and precision perfectly.

Precision Control: Micron-level Accuracy, Benchmark Quality

✅ 4-Direction High-Precision MillingDual-side 4-way clamping structure with servo direct-driven spindle feed, outperforming 95% of cylinder-driven machines on the market. More stable milling, higher accuracy and lower failure rate. Rack & pinion transmission matched with servo reducer delivers faster speed than ball screw transmission for high efficiency and precision.

✅ Ultra-Precision Angle CuttingServo swing angle driven by industrial RV reducer. Seamless switching between 45°/90°/135°. Angle tolerance down to ±0.1°. Built-in angle compensation ensures reliable cutting accuracy.

✅ Stable Cutting TechnologyVertical cutting design with worktable material support. Uniform stress distribution without air pressure restrictions. Consistent cutting angles and extended saw blade service life for stable processing quality.

Universal Compatibility: Flexible Machining, Space & Cost Saving

✅ Suitable for Long & Short ProfilesWide machining length range: minimum 1m, maximum 6m with extended capacity. Handles ultra-long and short profiles to meet all profile processing demands.

✅ Space-Saving Compact StructureOverall dimension: 9.5m × 1.5m × 2.4m. Compact footprint far smaller than traditional multi-machine solutions, greatly saving workshop area and reducing site costs.

✅ Intelligent Automatic OperationOne-click data import from door & window design software. Automatic feeding, machining, unloading and label printing for easy sorting. Compatible with automatic production lines. Equipped with chip collection and material avoidance function to prevent profile shifting, eco-friendly and cost-effective.

✅ Modular Auto Loading OptionOptional automatic loading mechanism with modular design for flexible combination.

Modern high-end appearance and superior performance among equivalent models. It is core intelligent equipment for door & curtain wall manufacturers to cut costs, raise output and expand market share.

Technical Parameters

Power Supply: 380V 50HzTotal Power: 22.25KWWorking Air Pressure: 0.5MPa–0.8MPaSpindle Motor: 4 × 3.5KWCutting Motor: 1 × 3.0KWSpindle Speed: 18,000 rpmCutting Motor Speed: 2800 rpmMax. Machining Cross-section: H120mm × W100mmRaw Profile Length: 1000mm–8000mmMax. Single Feeding Length: 3500mmMax. Single Milling Length: 3000mmFeeding Speed: 0–60 m/minMilling X-axis Speed: 0–75 m/minMilling Y-axis Speed: 0–60 m/minMilling Z-axis Speed: 0–20 m/minOverall Dimension: 9500mm × 1500mm × 2400mm
